6" recessed panel, 5CCT, 2hrs Fire rated : 6Y5T4

No Image
Available

Image may not reflect selected features

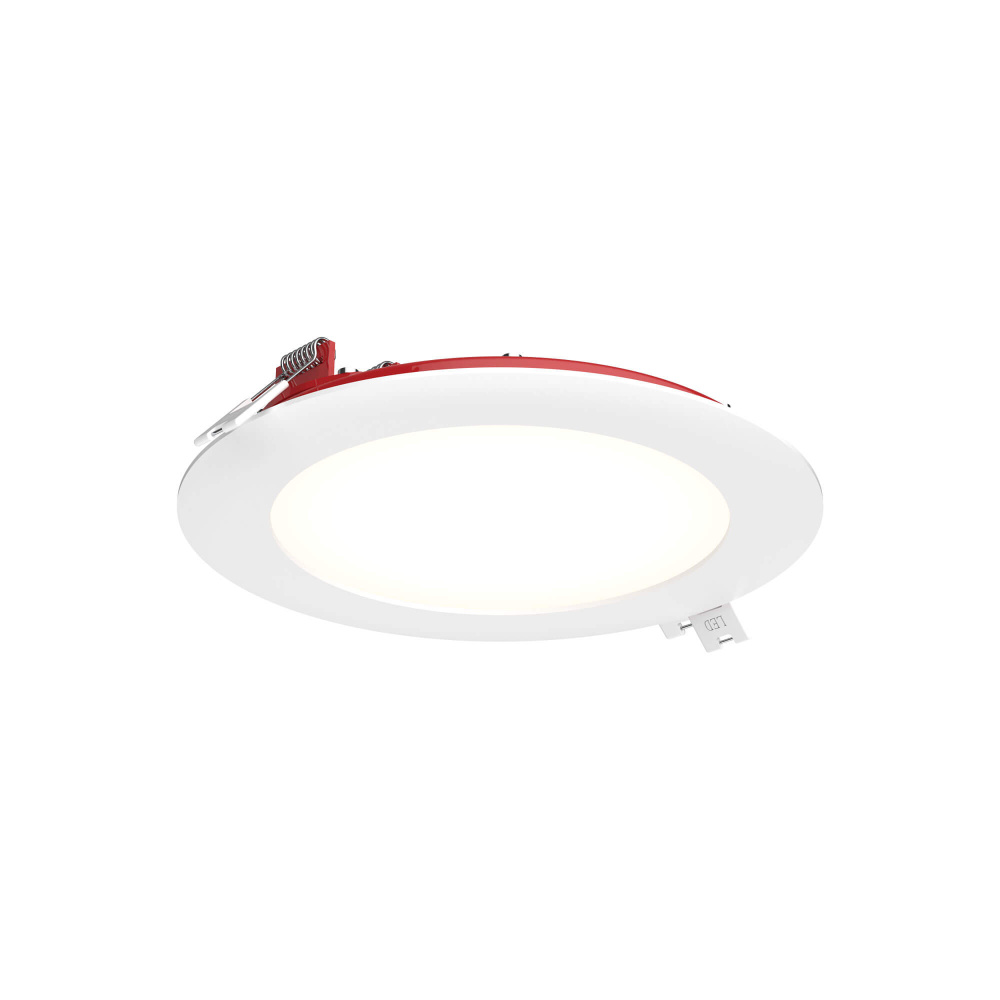

6" recessed panel, 5CCT, 2hrs Fire rated (6Y5T4)

Our new LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.

Downloads

Click Here to View Instruction Sheet

Click Here to View Catalog Sheet

Click Here to View Spec Sheet

Product Specification

Item #

6Y5T4

Dimensions

Height: 1.13"

Width: 7.13"

Length: 7.13"

Additional product details

Category

Recessed

Subcategory

Slim Panel

Finish

White

Option

Outdoor , Prop 65 , Title 24

Family

Excel

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Kelvin

2700/3000/3500/4000/5000

Material

Aluminum

Ship Carton Height

2.5

Ship Carton Length

8.5

Ship Carton Width

7.25

Ship Weight

1.2

Warranty

5 Years Limited

Weight

1.1

Air-Tight (ASTM E283--4)

Yes

Beam Angle

110

Bulb CRI

Country of Origin

China

Delivered Lumens

1230

Dimmer Type

Triac / ELV

Energy Star

IC Certification

Yes

Indoor

Yes

IP Rating

IP44

Lens Material

Plastic

Location Rating

Wet Rated

Max Wattage

14 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Prop 65

Yes

Safety Rating

ETL Approved

Shipping Master Height

15.25

Shipping Master Length

17.5

Shipping Master Quantity

Shipping Master Weight

Shipping Master Width

Title 24

Yes

Wiring

Hardwired

Other Details:

2-hour fire-rated without additional housing or hardware (in accordance with UL 263, ASTM E119, and CAN ULC S101)
Every fixture includes a junction box with an integrated driver
IC certification (suitable for direct contact with insulation)
Over 35,000 hours of service life
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
