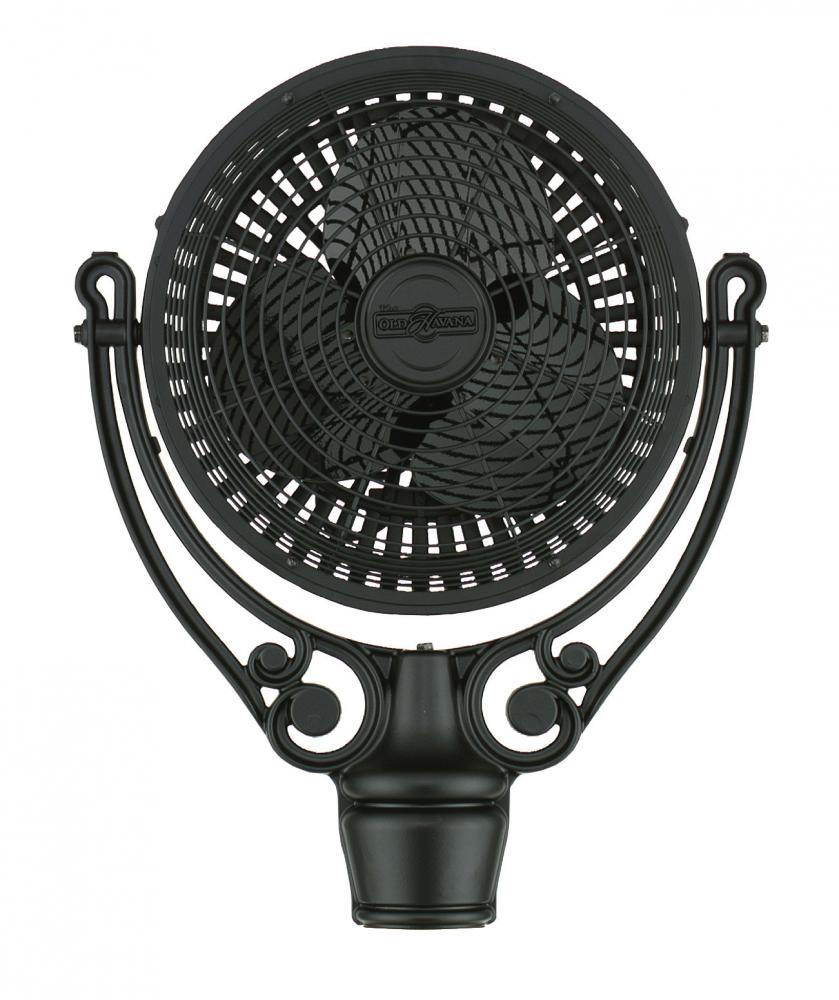

Old Havana Motor Assembly - BL (6V96M)
The strong silhouette and intricate details of the Old Havana epitomize Old World class and sophistication. The Old Havana has an antique style that is reminiscent of a time when people relied solely on fans to stay cool. Although the Old Havana’s historic look would make its pre-air conditioning predecessors proud, its modern engineering allows this fan to operate on three speeds in both dry and damp locations. The Old Havana has several mounting options which include a black pedestal base, black floor/desk mount and a black ceiling mount. The Old Havana is available in antique copper with black and pewter finish for dry locations and black and rust finish for damp locations.
Energy Information at High Speed
Airflow
923 Cubic Feet per Minute
Electricity Rate
52 Watts (excluded lights)
Airflow Efficiency
18 Cubic Feet Per Minute Per Watt
Downloads
Product Specification
Item #
6V96M
Dimensions
Height: 24.00"
Width: 19.00"
Length: 24.00"
Additional product details
Category
Fans
Subcategory
Fan Motor Without Blades
Finish
Black
Style
Transitional
Option
Damp Rated
Number of Blades
3 Blades
Category
Fan-Multi
Family
Old Havana
Voltage
120
Additional Info
4 position - 3 speed control, with pedestal, ceiling or wall mount capability
, 8 foot Power cord included
, Die-cast construction with Antique Copper, Black or Rust finishes available
, Limited Lifetime Warranty
, mix and match components and wall control sold separately
, Rotary control on fan
Air Flow CFM
923
Air Flow Efficiency
18
Amperage
0.45
Blade Finish
Black
Blade Pitch
20
Electricity Used
52
Harmonized Codes
8414.51.3000
Length
24
Material
Metal
Motor Fan Speed
3
Motor RPM
1360
Motor Size
90 x 20
Motor Type
AC
Ship Carton Height
11
Ship Carton Length
26
Ship Carton Width
21
Ship Weight
22
Sold By
Each
Warranty
Limited Lifetime Warranty
Weight
17
Airflow Efficiency Low
127
Airflow Efficiency Medium
15
Blade Finish Method
Painted
Blade Material
Metal
Blade Reversible
No
Blade Sweep
12
Carton Cubic Feet
3.4757
Cartons Per Unit
1
Case Height
3.476
Case Length
11
Case Weight Pounds
22
Case Width
26
CEC Uploaded
Yes
Ceiling To Blade Edge
22.5
Ceiling to Bottom No LK
27
CFM Low
342
CFM Medium
525
Compatible Accessories
FPH21BL, FPH41BL, FPH61BL, FPH70BL, FPH70CP, FPH70CW, FPH81BL1
Compatible Wall Controls
CH1LA, CH1WH
Country of Origin
Taiwan
Current Draw Low
0.23
Current Draw Medium
0.3
Damp Rated
Yes
DOE-FTC Uploaded
Yes
Exempt from DOE Procedure
No
Leadwire
96
Motor Finish Method Type
Painted
Motor Reversible
No
Number of Blades
3
Product Certification
UL
Regulated Product
Yes
RPM Low II
520
RPM Medium IV
790
Safety Rating
UL/cUL
Voltage Cycles
60HZ
Watts Low
3
Watts Medium
35
