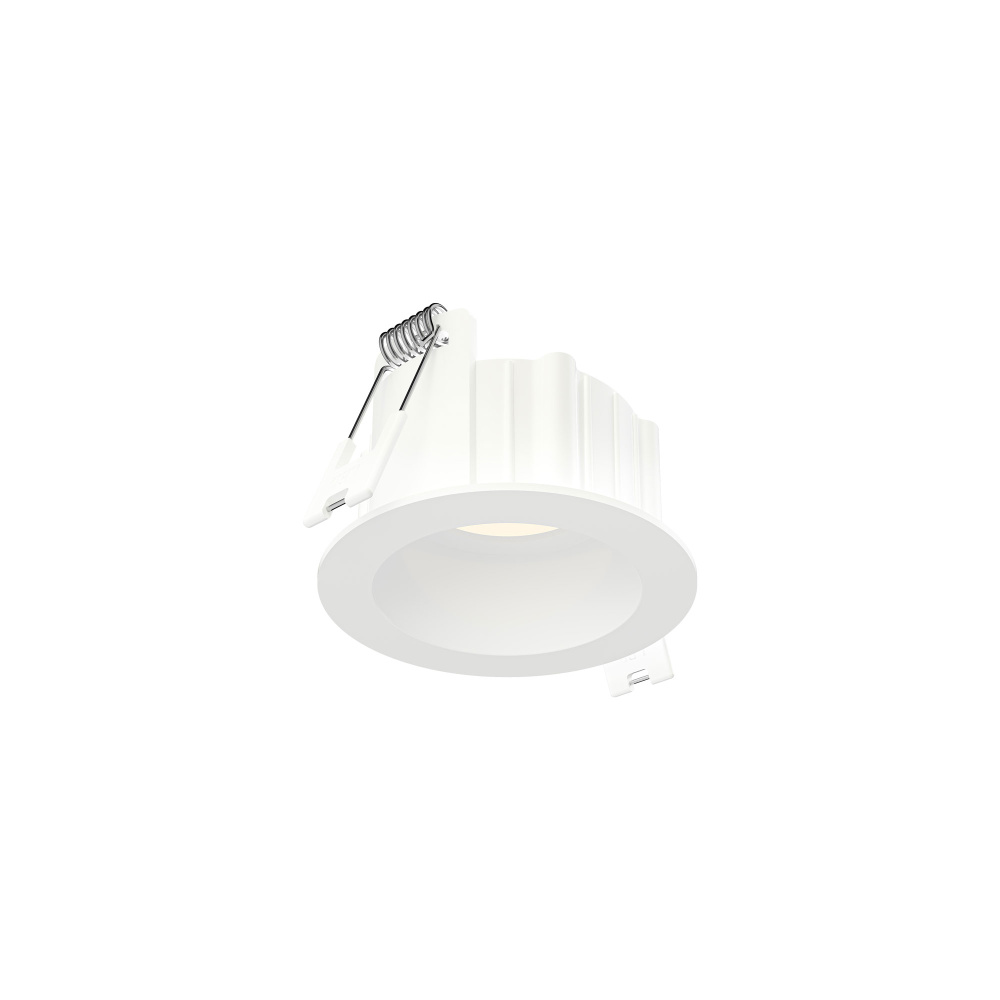

2'' 5CCT 1" deep regressed panel (6Y5U9)
The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.
Downloads
Product Specification
Item #
6Y5U9
Dimensions
Height: 1.88"
Width: 3.13"
Length: 3.13"
Additional product details
Category
Recessed Ltg.
Subcategory
Other Recessed Ltg.
Finish
White
Option
Title 24
, Outdoor
, Wet Rated
, Prop 65
Category
Recessed
Subcategory
Regressed
Finish
White
Option
Outdoor
, Prop 65
, Title 24
Family
Notch
Voltage
120 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
2.76
Ship Carton Length
6.1
Ship Carton Width
4.72
Ship Weight
1.5
Warranty
5 Years Limited
Weight
1
Air-Tight (ASTM E283--4)
Yes
Beam Angle
100
Bulb CRI
90
Country of Origin
China
Delivered Lumens
500
Dimmer Type
Triac
Energy Star
No
IC Certification
Yes
Indoor
Yes
IP Rating
IP44
Lens Material
Acrylic
Location Rating
Wet Rated
Max Wattage
9 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
15.75
Shipping Master Length
13
Shipping Master Quantity
20
Shipping Master Width
10.25
Title 24
Yes
Wiring
Hardwired
Other Details:
- Edge lit technology
- Frosted lens
- Over 50,000 hours of service life
- Smooth 360 degree wide spread
- Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
