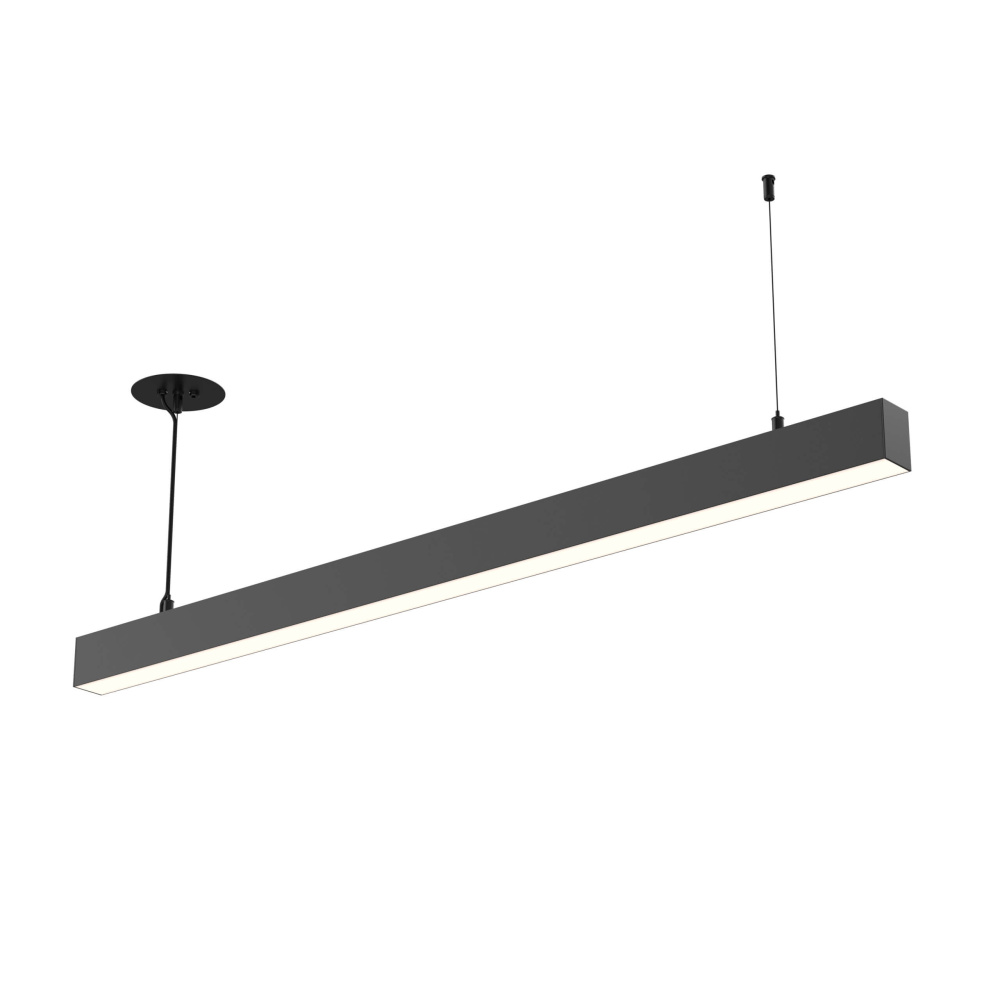

Pendant linear 48in 5CCT 0-10V dimming (120-277-347V) (6Y6TR)
The Boulevard series, a linear modular light fixture perfect for general office, home, and shop illumination. Can be interconnected to produce striking visual effects.
Product Specification
Item #
6Y6TR
Dimensions
Height: 2.50"
Width: 1.88"
Length: 47.13"
Additional product details
Finish
Black
Option
Energy Star
, Title 24
, Dry Rated
Category
Ceiling
Subcategory
Pendant
Finish
Black
Option
Energy Star
, Title 24
Family
Boulevard
Voltage
120 V/ 277 V/ 347 V
Number of Bulbs
1 Bulbs
Bulb Dimmable
Yes
Bulb Hours
50000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
4.5
Ship Carton Length
48.75
Ship Carton Width
5.5
Ship Weight
3
Warranty
5 Years Limited
Weight
2.5
Beam Angle
106
Bulb CRI
90
Cord Maximum Length
120
Country of Origin
China
Delivered Lumens
2805
Dimmer Type
0-10V Dimming
Energy Star
Yes
Indoor
Yes
IP Rating
IP20
Lens Material
PC
Location Rating
Dry Rated
Max Wattage
40 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Safety Rating
ETL Approved
Shipping Master Height
10
Shipping Master Length
49.5
Shipping Master Quantity
1
Shipping Master Weight
17
Shipping Master Width
11.5
Title 24
Yes
Wiring
Hardwired
Other Details:
- Dimming ranges from 10% to 100%
- Multiple fixtures can be connected together
- Switch-selectable CCT: 2700 K/ 3000 K/ 3500 K/ 4000 K/ 5000 K
- Unique 20% up/ 80% down light output
