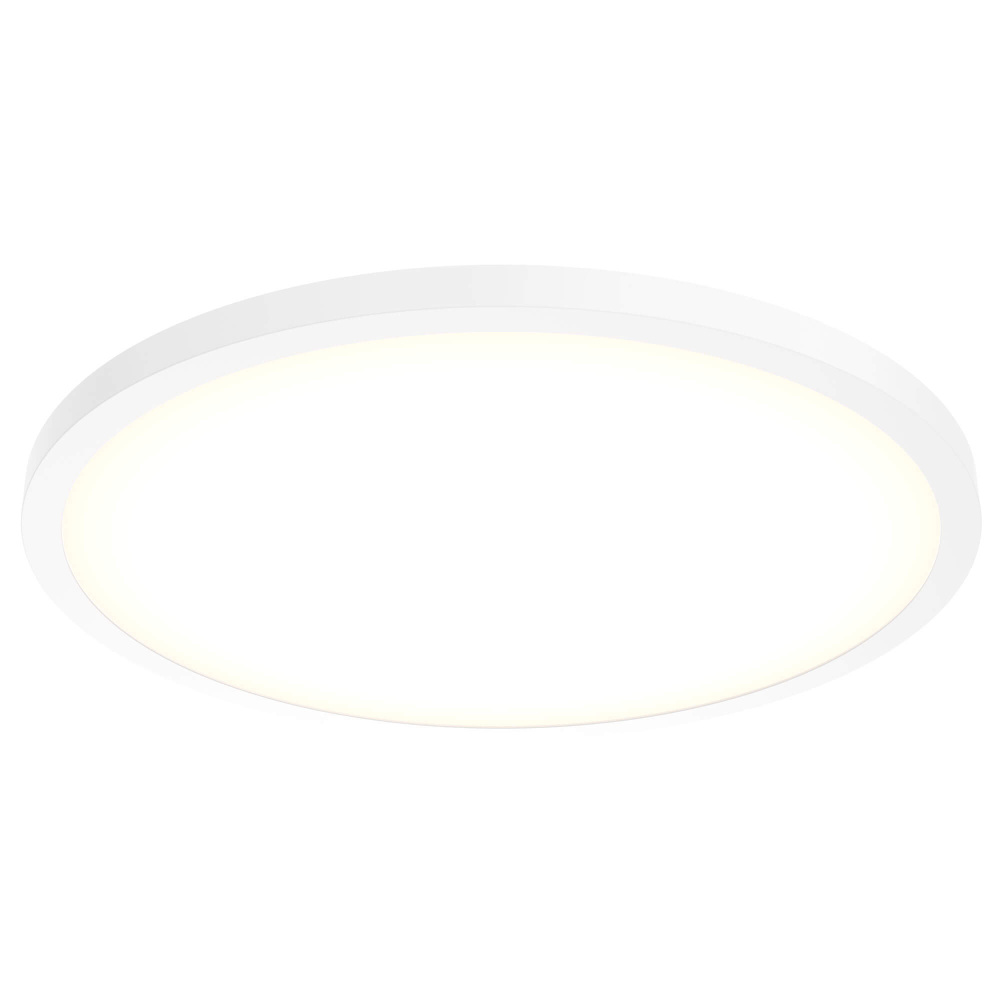

Round Flush Mount, universal 120V-347V, 0-10V dimming (6Y8PP)
Our LED flush mounts incorporate Edge-Lit technology, eliminating hot spots or glare. Can be installed inside or outside and offer 5 switch-selectable CCT settings – 2700 K, 3000 K, 3500 K, 4000 K, and 5000 K
Downloads
Product Specification
Item #
6Y8PP
Dimensions
Height: 1.00"
Width: 24.00"
Length: 24.00"
Additional product details
Finish
White
Option
Title 24
, Outdoor
, Wet Rated
, Prop 65
Category
Ceiling
Subcategory
Flushmount
Finish
Matte White
Option
Outdoor
, Prop 65
, Title 24
Family
Delta
Voltage
120 V/ 277 V/ 347 V
Number of Bulbs
1 Bulbs
Bulb Hours
50000
Kelvin
2700, 3000, 3500, 4000, 5000
Material
Aluminum
Ship Carton Height
2.75
Ship Carton Length
26.4
Ship Carton Width
26
Warranty
5 Years Limited
Beam Angle
110
Bulb CRI
90
Country of Origin
China
Delivered Lumens
2894
Dimmer Type
0-10V
Indoor
Yes
IP Rating
IP44
Lens Material
PC
Location Rating
Wet Rated
Max Wattage
40 W
Maximum Working Temperature
40°C
Minimum Working Temperature
-20°C
Outdoor
Yes
Prop 65
Yes
Safety Rating
ETL Approved
Shipping Master Height
2.75
Shipping Master Length
26.4
Shipping Master Quantity
1
Shipping Master Width
26
Title 24
Yes
Wiring
Hardwired
Other Details:
- Frosted lens
- Integrated dimmable driver
- Over 50,000 hours of service life
- Smooth 360° wide spread
- Suitable for outdoor locations on covered ceilings only
